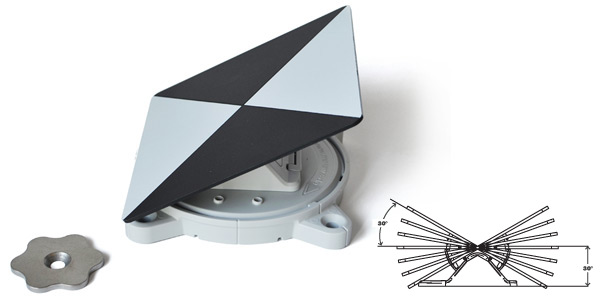

Laser Scanner Targets RSL-X90M

  • Excellently suited to scanners from Leica, Geomax and Faro
  • Fixed points for connecting several positions
  • Allocation of spatial reference information to a geospatial dataset
  • Magnetic – non-magnetic version available on request
  • The following products have the same XYZ coordinates when using the fixed point RSFP-X90
  1. Mini-prisms RSMP290M and RSMP390M
  2. Reflective target RS193M
  3. Laser scanner target RSL-X90M
  4. In combination with survey mark RSFP-X90, any of the listed mini-prisms or targets can be set up at the same point again and again
  • When using the survey mark RSFP-X90, the same measuring point can be used with tachymeter, robotic total station, laser scanner and drone.
  • For repeat measurements, only a small, barely visible, stainless steel survey mark is left on the building (e.g. on a façade).  The reflective targtes, mini-prisms, laser scanner targets or drone targets are fitted on the survey marks just for the measurements.
  • If need be, the laser scanner targets can also be permanently glued or fixed


b_213_0_16777215_00_images_RSL-X90M_RSL-X90_01.jpg b_213_0_16777215_00_images_RSL-X90M_RSL-X90_02.jpg b_213_0_16777215_00_images_RSL-X90M_RSL-X90_03.jpg

b_0_160_16777215_00_images_RSL-X90M_RSL-X90_RSFP-X90_01.jpg b_0_160_16777215_00_images_RSL-X90M_RSL-X90_RSFP-X90_02.jpg b_0_160_16777215_00_images_RSL-X90M_RSL-X90_RSFP-X90_03.jpg
