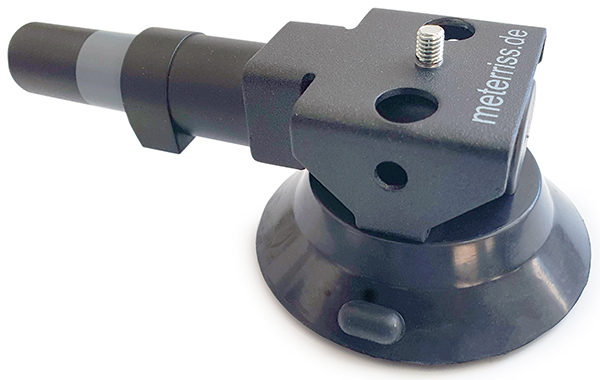

Suction Cup RSSV-X80

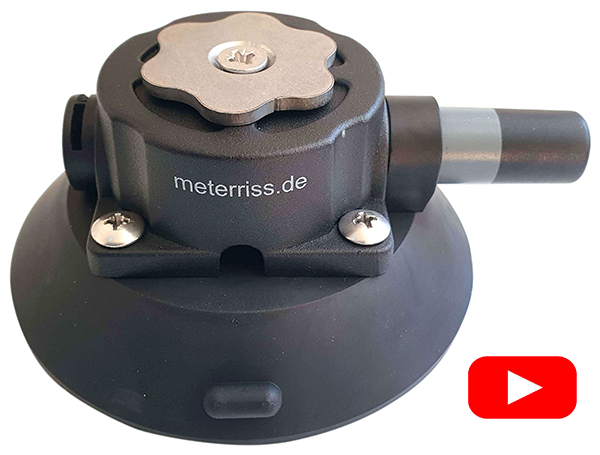

Suction Cup RSSV-X90

Version ∅ 75 mm for RS183, RSMP280, RSMP380, RSL-X80, RSL580
Version ∅ 120 mm for all RS products with magnetic base

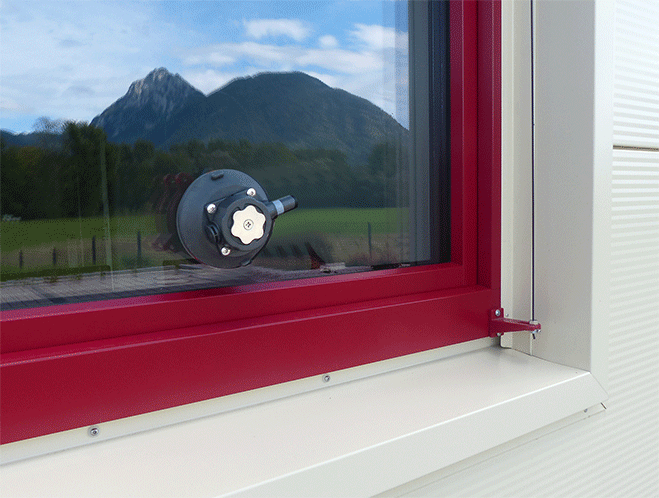

For all glass surfaces and smooth surfaces, indoors and outdoors.

Its pump function allows the suction cup to be firmly attached to the surface. Simple and quick installation – with no gluing or drilling required – is so guaranteed.

Using the correct offset, the surveyor always obtains the same survey point or the same XYZ coordinates.

Tilting axis height for all articles (RSL-X80 to RS183) at the illustration above: 30 mm Tilting axis height for all articles (RSL-X90M to RS193M) in the upper part of the illustration: 45 mm
Tilting axis height for the articles RSL422M and RSLSB10M at the bottom of the illustration: 100 mm


Dimensioning file Accessories for download.
Here you find a dimensioning file for each RS product.







ONE POINT FITS ALL


With the fixed points RSFP-X90, RSFP-X99, RSFP-X99-1+2, the adapter RSFP-X90-1, RSFP-X90-2 and RSFP-X90-3 as well as the suction cup RSSV-X90, reflective targets, mini prisms and laser scanner- and drone targes can always be repositioned in exactly the same place.

More information...

DIMENSIONING

Find here an overview of dimension files.
