RSFP-X90

Fixed Point RSFP-X80
(Resumption Point)

Fixed Point RSFP-X90
(Resumption Point)

Fixed Point for RS183, RSMP280, RSMP380, RSL-X80, RSL580
Fixed Point for all RS products with magnetic base

A survey point for all current surveying instruments such as total stations, robotic total stations, scanners and drones!

Using the correct offset, the surveyor always obtains the same survey point or the same XYZ coordinates.

The fixed point can be glued to all usual surfaces. For ease and speed of mounting, we recommend RSMK-FIX construction glue.

When aligning the prisms or reflective targets in different directions the survey point remains the same. Use in almost any direction is thus assured.

The illustration shows all the products that can be used with the RSFP-X80 fixed point. The illustration shows all the products that can be used with the RSFP-X90 fixed point. Magnets in the base plate hold the reflective target or mini prism precisely on the desired spot.




Dimensioning file Accessories for download.
Here you find a dimensioning file for each RS product.



RSFP-X80 RSFP-X90

b_150_0_16777215_00_images_Anwendungsbeispiele_1_RSFP-X80g.jpg   b_150_0_16777215_00_images_Anwendungsbeispiele_2_RSFP-X80_RS183r_.jpg

b_150_0_16777215_00_images_Anwendungsbeispiele_3_RSFP-X80_RSMP380r.jpg   b_150_0_16777215_00_images_Anwendungsbeispiele_4_RSFP-X80_RSL-X80.jpg

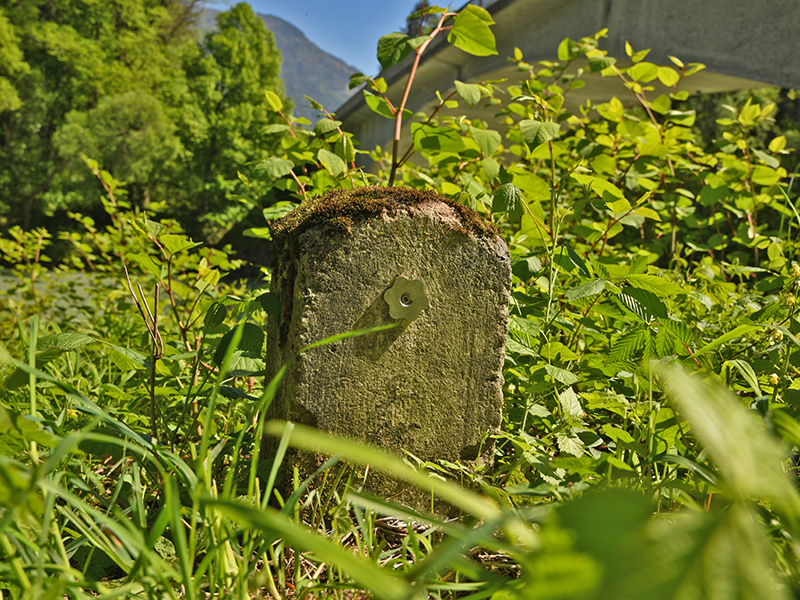

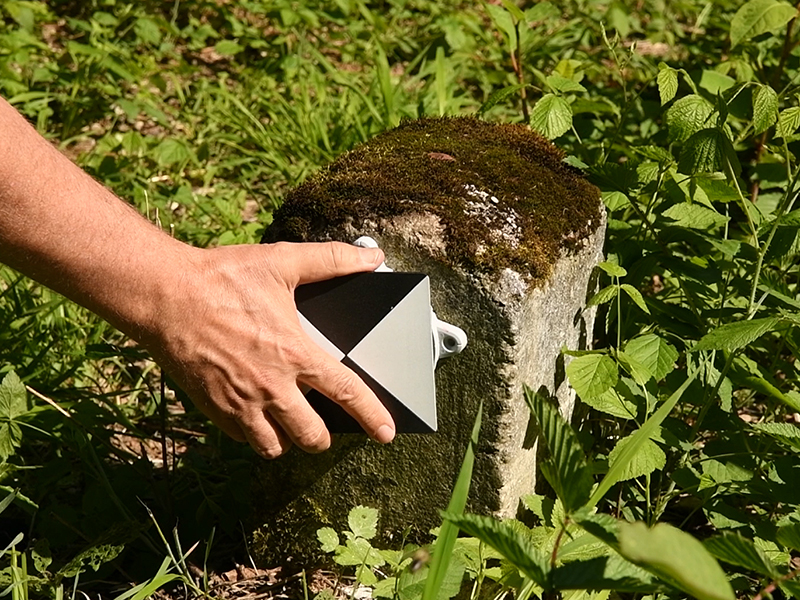

b_150_0_16777215_00_images_Anwendungsbeispiele_01_Grenzstein2020-RSFP-X90.jpg   b_150_0_16777215_00_images_Anwendungsbeispiele_RSFP-X90_RSL590M_GRENZSTEIN.jpg


ONE POINT FITS ALL


With the fixed points RSFP-X90, RSFP-X99, RSFP-X99-11+12, the adapter RSFP-X90-1, RSFP-X90-2 and RSFP-X90-3, RSFP-X90-5, RSFP-X90-20, -21, -25, -26, RSFP-X98 as well as the suction cup RSSV-X90, reflective targets, mini prisms and laser scanner- and drone targes can always be repositioned in exactly the same place.

More information...

DIMENSIONING

Find here an overview of dimension files.
