Stake Out Aid for Robotic Total Stations  with Mini Prism RS150MStake Out Aid for Robotic Total Stations  with Mini Prism RS150M animation

Stake Out Aid for Robotic Total Stations
with Mini Prism RS150M



An innovative new solution for staking out measuring points quickly and accurately on horizontal or vertical surfaces using robotic total stations.

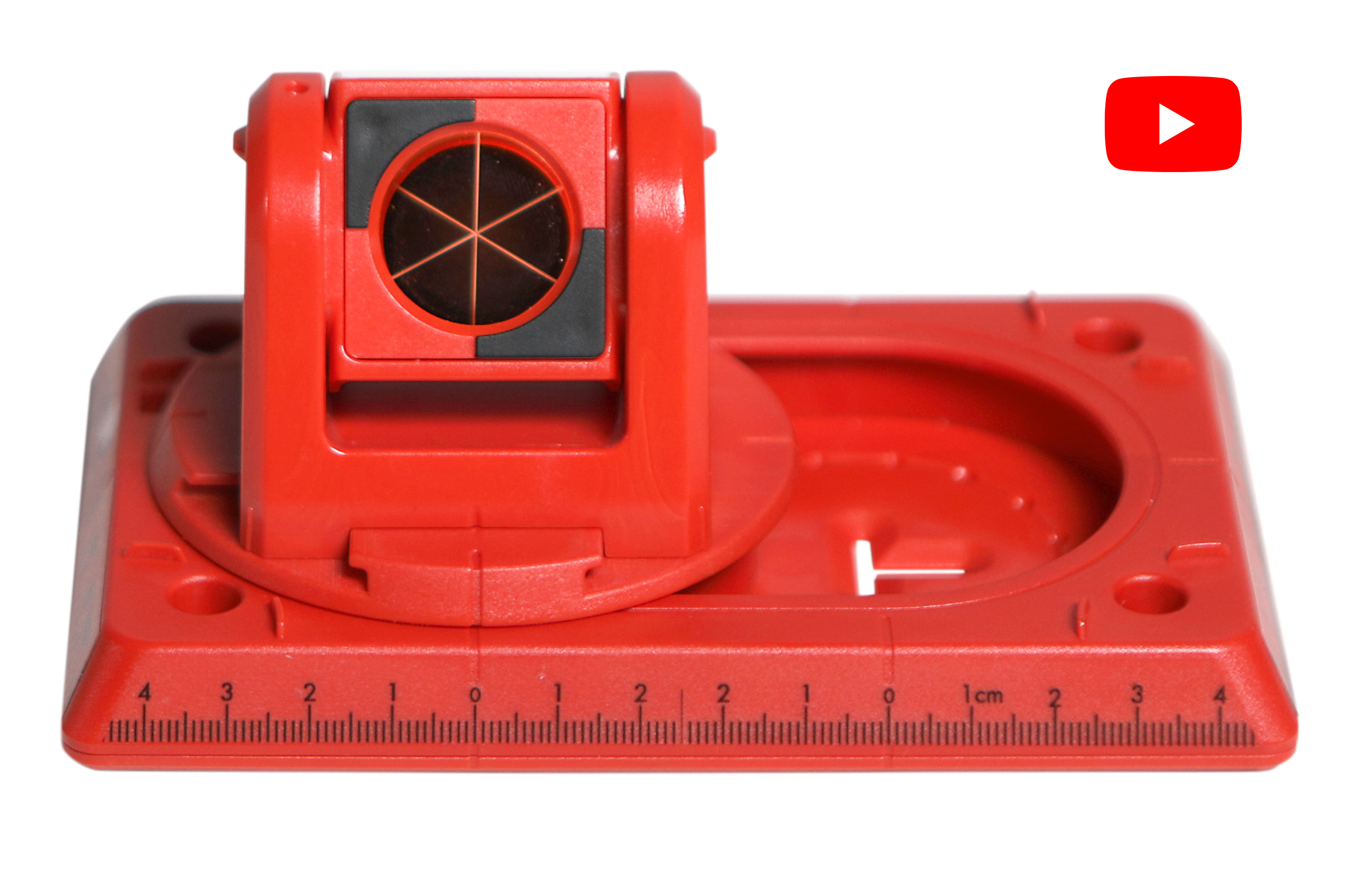

After reaching the point to be measured, the particular measuring point is revealed directly below the prism by simply sliding the prism from position A to position B and vice versa, and can be marked directly via a cavity in the base plate.

Advantages:

  • Direct marking of the point to be measured on the surface
  • Prism always remains aligned to the instrument
  • Paying attention to a horizontal position by means of a spirit level is not usually necessary, as the tilt axis height is only 50 mm
  • A scale on the side walls allows the distances given by the measuring instrument to be transferred quickly and easily.
 measuring scale in mm or THS
Measuring scale on the side walls in mm or THS




Dimensioning file RS150M for download.
