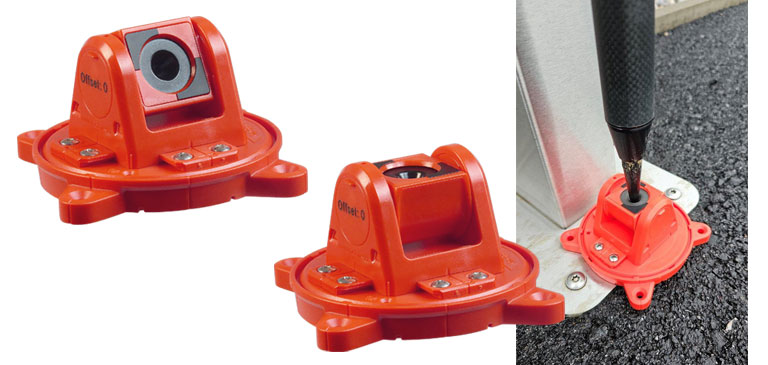

Fixed Point for GPS and GNSS
|
RS090M
|
Advantages of using the RS090M in conjunction with GPS and GNSS:
- Simplified measurement of fixed points for the total station or laser scanner (georeferencing) using GNSS (if an accuracy of less than 1 cm is sufficient)
- No hammering in nails. Use the RSFP-X90 to RSFP-X99 fixed point system instead. This provides many more mounting options compared with conventional nails:
- Glue - Screw - Magnet
- Fixed points can also be measured on vertical objects (e.g. walls) using tilt GNSS
- Continuous work flow of different measuring techniques: GNSS – laser scan/LiDAR – photogrammetry – manual and motorised total station – laser tools (line laser and rotating laser)
Offset: 0 tilting axis height: 45 mm
|
![](/images/Anwendungsbeispiele/RS090M/01_RSFP-X90_Ground.jpg)
|
![](/images/Anwendungsbeispiele/RS090M/02_RS090M_on_RSFP-X90.jpg)
|
![](/images/Anwendungsbeispiele/RS090M/03_RSMP390M_on_RSFP-X90.jpg)
|
Fixed Point RSFP-X90 on the floor
|
RS090M on RSFP-X90
|
RSMP390M on RSFP-X90
|
![](/images/Anwendungsbeispiele/RS090M/04_RSMP390M_through_instrument.jpg)
|
![](/images/Anwendungsbeispiele/RS090M/05_RS090M_on_wall_1.jpg)
|
![](/images/Anwendungsbeispiele/RS090M/06_RS090M_on_wall_2.jpg)
|
RSMP390M view through the instrument
|
RS090M on the wall
|
RS090M on the wall
|
![](/images/Anwendungsbeispiele/RS090M/07_RS090M_on_magnetic_base.jpg)
|
![](/images/Anwendungsbeispiele/RS090M/08_result_of_positioning.jpg)
|
|
RS090M on magnetic base
|
Result of positioning
|
|
Dimensioning file RS090M for download.
Here you find a dimensioning file for each RS product
