Tilting axis height 100 mm

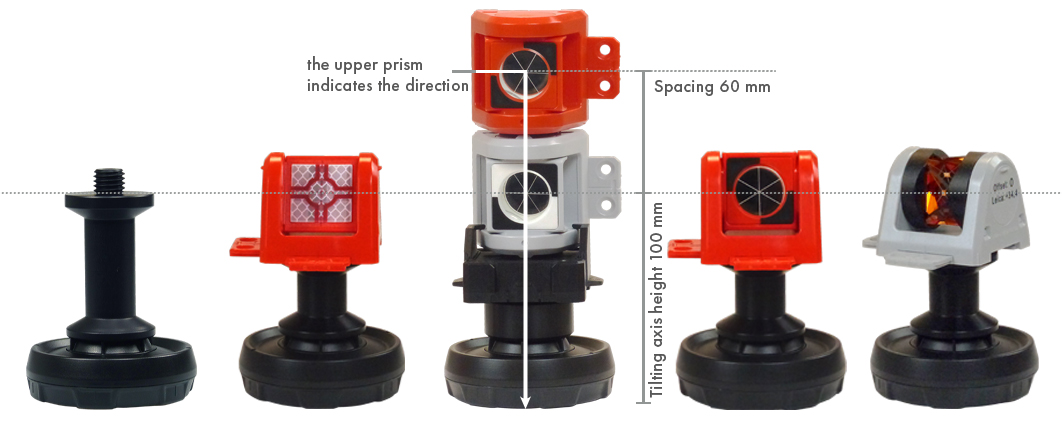

RS0190M, RS195M, RSMP392M, RSMP395M and RSMP495M

The Mini Prisms RSMP392M, RSMP395M and the Reflective Target RS195M and the 220 degree Mini Prism RSMP495M have a tilting axis height of 100 mm, thus enabling the exact calibration of the following reference points by means of a total station:

• Laser scanner target RSL422M
• Laser scanner sphere RSLB10M
• Ground control target and Mobile mapping target RSL-X95M

Thus, accuracies of ± 1 mm can be achieved using scanners and ground controls.

Fixed point for GNSS antenna RS0190M

For direct mounting of antennas with 5/8” female thread. Tilting axis height: 100 mm

Reflective Target RS195M

Offset: 0, tilting axis height: 100 mm

Mini Prisms RSMP392M and RSMP395M

Offset: -16,9 (Leica +17,5), tilting axix height: 100 mm

220 Degree Mini Prism RSMP495M

Offset: 0 (Leica +34,4), tilting axix height: 100 mm
