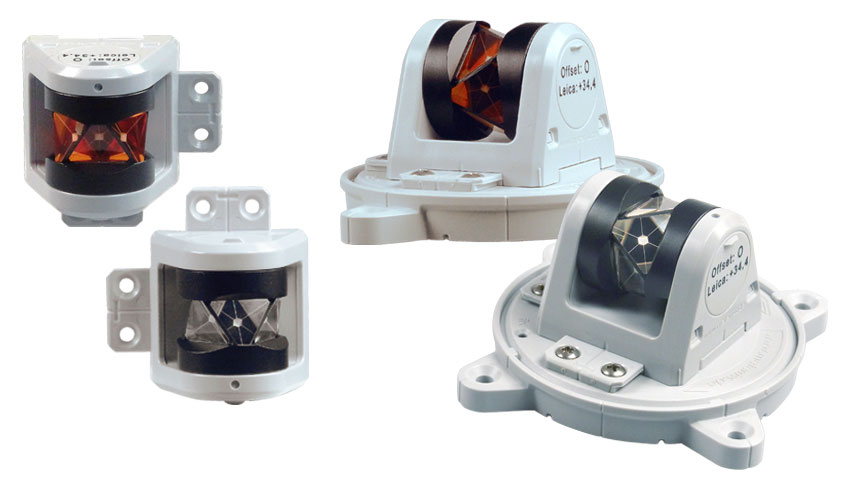

220 degree mini prisms RSMP480 and RSMP490M

220 degree Mini Prisms

RSMP480

RSMP490M - with magnetic base

A prism that sets standards
  • Enables reference points to be located from virtually any direction
  • Thanks to the RS range of accessories, quick and easy mounting on almost all surfaces is guaranteed
  • Also available as version RSMP480M for track monitoring

Based on experience, aiming the prisms in ATR mode delivers the best measurement results. Accuracy levels of approximately ±1 mm are often achieved.

The combination of easy mounting on almost all surfaces with our accessories and the possibility of being able to use the measuring point from all sides makes these prisms something special.

When using mini prism RSMP480 and RSMP490M in the ATR mode ranges of up to 300 meters are obtained.

The ranges are dependent on the device and can be adversely affected by weather and environmental conditions.

A product from the series “A reference point for all instruments”

Available in grey for a longer period of time

Offset: 0 (Leica +34.4),
tilting axis height: 30 mm

 Offset: 0 (Leica +34.4),
tilting axis height: 45 mm

A smart and cost-effective alternative for a 360 Degree Prism:

220 Degree Mini Prism RSMP480 with a 5/8" adapter on a prism pole

Offset: 0 (Leica +34.4), tilting axis height: 50 mm

RSMP480 220 degree mini prism on a prism pole

Dimensioning file RSMP480 and RSMP490M for download.
Here you find a dimensioning file for each RS product.
