One Fixed Point For All Instruments
Create fixed points quickly, easily and permanently – a unique system with multiple options
Using the correct offset, the surveyor always obtains the same survey point or the same XYZ coordinates.
Our new video "One Point Fits All" gives you an overview about the Fixed Point System RSFP-X90.
Fixed Point System RSFP-X90 for all RS products with magnetic base
One reference point for all instruments: Total stations, robotic total stations, scanners, drones, Lidar, SLAM, Mobile Mapping, GPS and GNSS!
|
 |

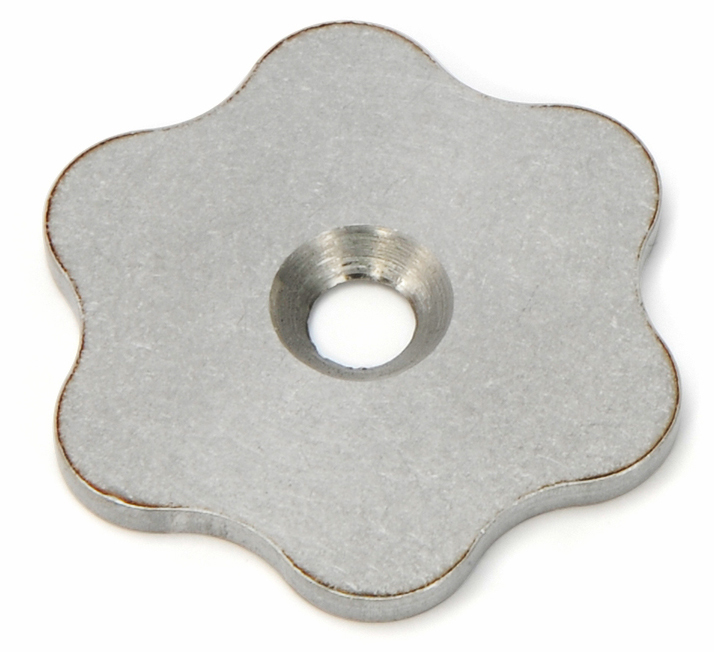

RSFP-X90 - the best-known fixed point from this series
- Fixed Point for all RS products with magnetic base
- When using products with the same tilting axis height the reference point always remains exactly the same!
|
 |
 |
RSFP-X90-1+3
- RSFP-X90 fixed point as separate version with a 5/8” (RSFP-X90-1) or 3/8” (RSFP-X90-3) female thread
- When used with a tripod with 5/8” or 3/8” UNC threaded rod
|
 |
 |
RSFP-X90-2
- RSFP-X90 fixed point as separate version with a 5/8” male thread
- When used with a tripod with 5/8” UNC threaded rod or in combination with the RSA-5/8-1 adapter
|
|
 |
RSFP-X90-m6, RSFP-X90-m8
- Fixed Point RSFP-X90 as a separate version with a m6 thread (RSFP-X90-m6) and a m8 thread (RSFP-X90-m8).
|
|
 |
RSFP-X90-30 to 39*
- Power socket adapter – smart solution for reference points inside
- *different country versions
- Ideal for digital 3D surveys
|
 |
 |
RSFP-X90-5 and RSFP-X99-5
-
In combination with Leica bolts there is the RSFP-X90-5 adapter, enabling all our products with a magnetic base to be easily attached to any Leica bolt.
-
If greater magnetic adhesion to the adapter is desired or required, we recommend the RSFP-X99-5 adapter (e.g. in tunnels).
|
|
 |

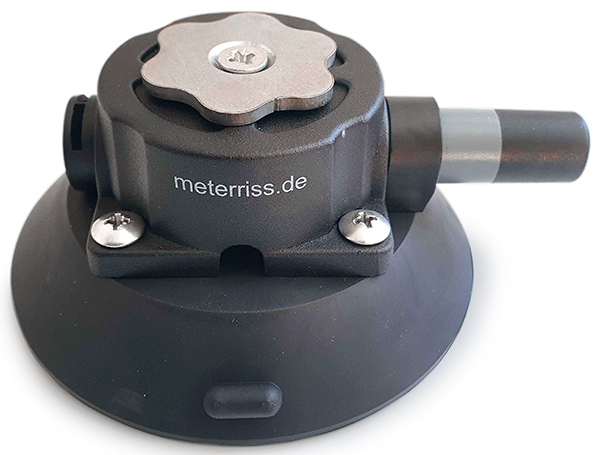

RSSV-X90, RSSV-X99
- Suction Cup for all glass surfaces and smooth surfaces, indoors and outdoors
- If greater magnetic adhesion to the adapter is desired or required, we recommend the suction cup RSSV-X99
|
|
 |
RSFP-X90-20, RSFP-X90-21, RSFP-X99-20, RSFP-X99-21
- Fixed points with heavy duty anchor for quick and safe mounting of reference points on rocks, difficult surfaces or on historic buildings in the mortar joint.
- If greater magnetic adhesion to the adapter is desired or required, we recommend the adapter RSFP-X99-20 and RSFP-X99-21
|
 |
 |
RSFP-X90-25, RSFP-X90-26, RSFP-X99-25, RSFP-X99-26
- Fixed point RSFP-X90 and RSFP-X99 for clamping points or pipes
- If greater magnetic adhesion to the adapter is desired or required, we recommend the adapter RSFP-X99-25 and RSFP-X99-26
|
 |
 |
RSFP-X97-2, RSFP-X97-3
|
|
 |
RSFP-X98
- The ground stand is available straightaway for every instrument at any location
|
 |
 |
RSFP-X99
- Fixed Point for difficult ground
|
 |
 |

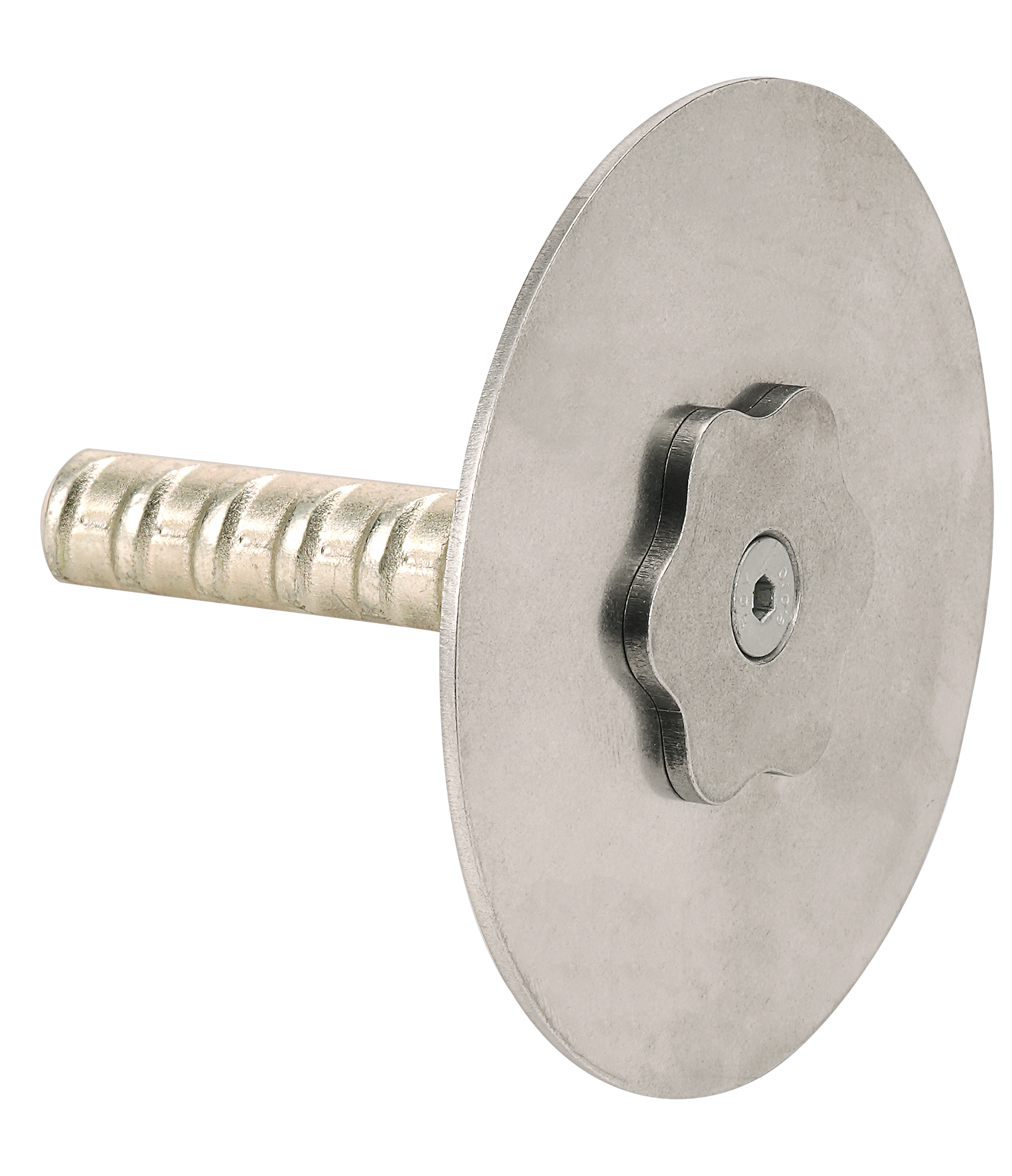

RSFP-X99-1
- Fixed Point for tripod or tribrach
|
|
 |
RSFP-X99, RSFP-X99-11+12
- For quick fixed points on construction sites and for BIM reference points in tunnels
- Quick fixing on difficult substrates
- Long-term solution for monitoring
|
|
 |
RSFP-X99-70
- Fixed Point for tension belts
|
|
 |
RSFP-X99-73
Fixed Point for pipes and scaffolding with ∅ 48 - 51 mm
|
|
 |
RSFP-X90-S40
- Control measurements of inside and outside corners
- Control measurements at recesses or at the edge of the ceiling
- Measurements on pillars – direct measurements can be taken on bevelled edges at the vertex!
- Transfer heights around the corner with marking attachment
- Measure of position and heights of corner blocks quickly and precisely when bonding clay blocks
|
|
| |
QR codes lead to respective application films on our YouTube channel
|
Dimensioning file Accessories for series RSFP-X90 to RSFP-X99 for download.
Here you find a dimensioning file for each RS product.
